12VDC Linear Actuator. 400RPM, 4.5 Amps, 30" Stroke price

You want to purchase 12VDC Linear Actuator. 400RPM, 4.5 Amps, 30" Stroke, Yes ..! It comes in the correct place. You can Add Special Discount for 12VDC Linear Actuator. 400RPM, 4.5 Amps, 30" Stroke.You can select to purchase the product and 12VDC Linear Actuator. 400RPM, 4.5 Amps, 30" Stroke at The Best Price Online using Secure Transaction Here..





Customer Rating:



See Details

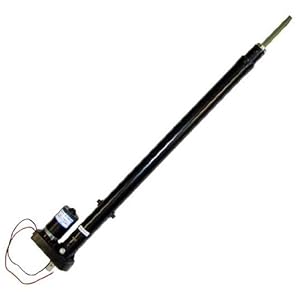

This motor on this 12-volt linear actuator is 6" x 3" x 6" overall. Output is through both a 2-draw mast that measures 2" dia at bottom, with a flattened 3/4"-10 threaded rod that extends 5-1/2" past the top draw and a keyed 1-1/4" long x 5/8" hex shaft below the gearbox (approx 400 rpm). Draws 4.5A at 12VDC no load, stalls at 30A. Retracted length is 35", extended length is 66" counting the rod and hex shaft. Stroke approx 30".



Product Features
12-volt linear actuator with a motor size of 6" x 3" x 6" overall.
Output is through both a 2-draw mast that measures 2" dia at bottom, with a flattened 3/4"-10 threaded rod that extends 5-1/2" past the top draw and a keyed 1-1/4" long x 5/8" hex shaft below the gearbox
(approx 400 rpm). Draws 4.5A at 12VDC no load, stalls at 30A. Retracted length is 35", extended length is 66" counting the rod and hex shaft. Stroke approx 30".
